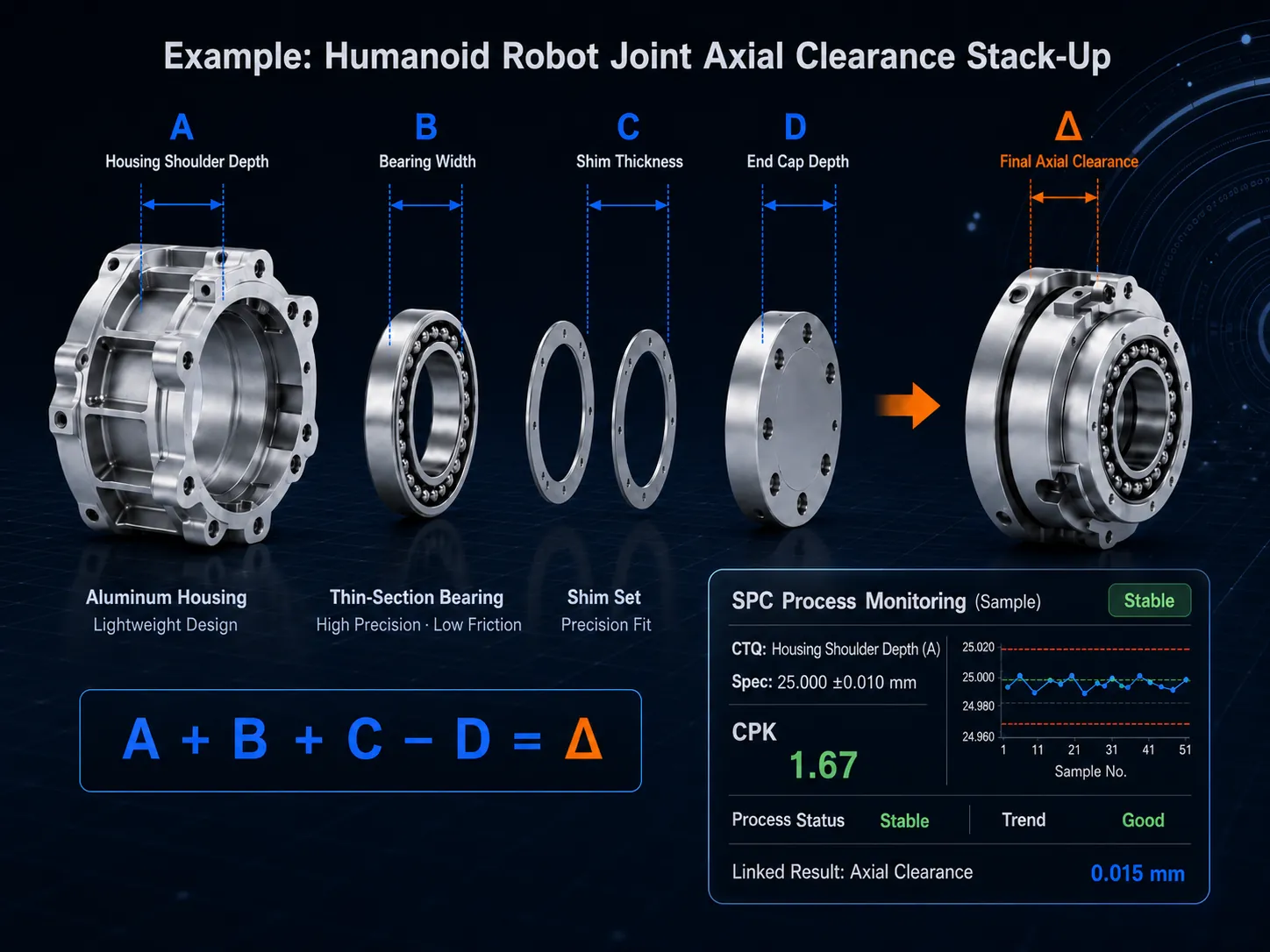

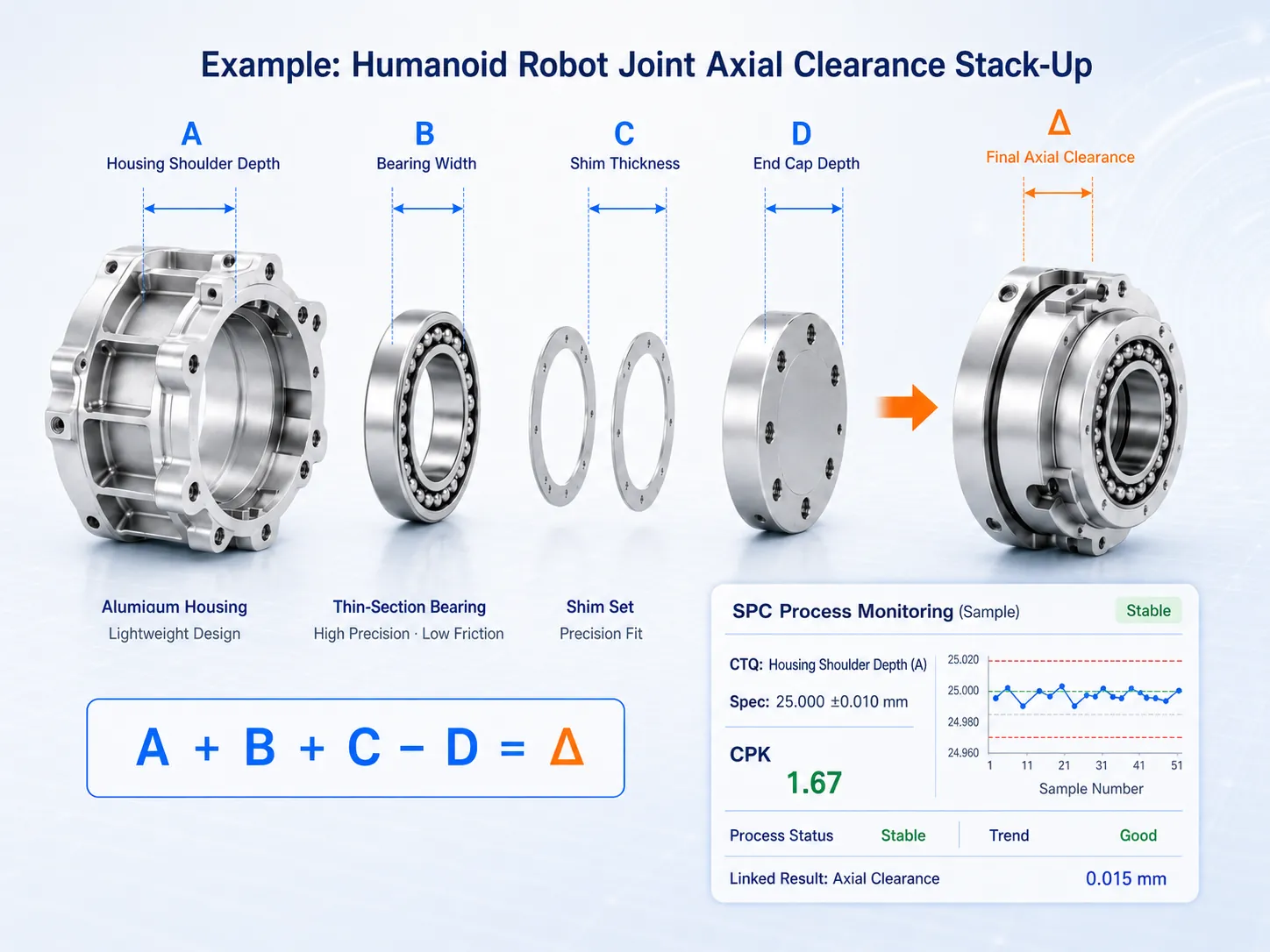

From Contributing Dimensions to the Final Result
A + B + C − D = Δ
A, B, C and D represent dimensions of the housing, bearing, shim and end cap. Δ is the final axial clearance.
TOLERANCE STACK-UP MANAGEMENT
All Individual Dimensions May Pass, Yet Assembly Can Still Go Out of Spec Stack-Up Analysis · Key Contributors · SPC Production Loop
Tolerance stack-up management does not stop at checking individual dimensions. It starts from final function, assembly relationships and risk outcomes to identify key contributors such as housing, bearing, shims and end cap, then converts them into process CTQs. For stable production programs, Zhongde validates stack-up stability through SPC, CPK and assembly results.
- Define the closed loop from clearance, preload and contact requirements
- Identify housing, bearing, shims and end-cap contributors
- Validate stability through CTQ, SPC, CPK and assembly results
Closed Loop
Final clearance · preload · contact
Key Contributors
Housing · bearing · shims · end cap
SPC Production Loop
CTQ · CPK · trend monitoring
Assembly Validation
Stack-up linked to product function
WHAT IS A TOLERANCE STACK-UP
What Is a Tolerance Stack-Up?
Start with the final functional result, identify every dimension that affects it, and determine whether each dimension increases or decreases the result.
Four Questions to Understand a Stack-Up
Final Functional Dimension Closed Loop
What final result must be guaranteed?
Define the final functional requirement, such as axial clearance, bearing preload, seal compression, assembly height or thermal contact height.
Influencing Dimensions Contributing Dimensions
Which dimensions affect the final result?
Identify every relevant dimension, such as housing shoulder depth, bearing width, shim thickness and end-cap depth.
Direction of Influence Positive / Negative Contributors
How does each dimension affect the result?
Some dimensions increase the final result as they grow, while others reduce the final result as they grow.
Accumulated Variation Tolerance Accumulation
Why can passing parts still fail?
Each dimension may remain within its own tolerance, yet unfavorable variations can combine and push the final assembly out of specification.
Stack-up analysis is not simply adding tolerances. It identifies which dimensions, and in which direction, collectively affect final product function.
REDUCE UNNECESSARY TOLERANCE STACK-UPS
Reduce Unnecessary Tolerance Stack-Ups First
Use common design, machining, inspection and assembly datums to reduce variation caused by chained dimensions and repeated datum transfers.
Not Recommended | Chained Dimensioning
Accumulated variation
Variation from each preceding dimension is transferred to the next.
Variation accumulates step by step, increasing final position risk
Recommended | Common-Datum Dimensioning
Common datum A
Critical positions B, C and D are defined directly from the same datum.
Critical dimensions remain independent and easier to inspect
Define the Final Functional Dimension
Confirm whether the true requirement is clearance, preload, total height, seal compression or contact condition.
Use a Common Datum System
Align design, machining, inspection and assembly datums wherever practical to reduce datum transfers.
Reduce Chained Dimensions
Define critical positions directly from a common datum instead of transferring variation through intermediate dimensions.
Retain Necessary Functional Chains
Stack-ups that cannot be eliminated proceed to tolerance analysis, CTQ definition and production control.
Stack-up optimization does not eliminate every dimensional relationship. It removes unnecessary accumulation first, then controls unavoidable functional stack-ups.
KEY CONTRIBUTORS & SPC CLOSED LOOP
For Unavoidable Functional Stack-Ups, Identify the Main Contributors
Not every contributing dimension is equally important. Zhongde identifies the dimensions with the greatest influence on the final functional result, converts them into CTQs, and validates production stability through SPC, CPK and assembly results.
From Functional Stack-Up to Production Control
01
Final Functional Result
02
Identify Contributors
03
Main Contributors
04
Convert to CTQ
05
SPC / CPK Monitoring
06
Assembly Validation
A + B + C − D = Δ
Identify the main contributors before applying process control.
Tolerance Contribution Pareto
Example contribution of each dimension to final axial-clearance variation.
A Housing shoulder depth
52%
B Bearing width
26%
D End-cap depth
14%
C Shim thickness
8%
Prioritizing A and B can significantly improve overall stack-up stability.
01
Identify Main Contributors
Use stack-up analysis, experience data and trial results to determine which dimensions have the greatest functional impact.
02
Convert Them into CTQs
Define specifications, tolerances, inspection frequency and methods for high-contribution dimensions.
03
SPC Process Monitoring
Use trend charts, control charts and CPK evaluation to monitor production variation continuously.
04
Validate Assembly Results
Use actual clearance, preload, sealing or contact results to validate the stack-up and control plan.
Zhongde does not control every dimension equally. We prioritize the contributing dimensions with the greatest impact on the final result.
FROM DRAWING TO PRODUCTION
From Drawing to Production: Stack-Up Review Deliverables
Tolerance stack-up analysis must be translated into drawings, CTQs and production controls so that design intent can be achieved consistently in manufacturing, inspection and assembly.
Customer Information
Assembly and Part Drawings
Used to confirm part relationships, datums, fits and assembly sequence.
Final Functional Requirements
Define clearance, preload, seal compression, assembly height or contact condition.
Critical Purchased-Part Specifications
Provide dimensions and tolerances for bearings, seals, shims and other purchased components.
Project Stage and Volume
Clarify whether the project is in prototyping, production introduction or stable production.
Available Measurement Data
Include dimensional distributions, assembly results, capability data or historical issues.
Zhongde Precision
Professional Stack-Up Review
Goal: Functional Compliance + Stable Production
Reduce unnecessary assembly variation and improve yield, reliability and process control.
Zhongde Review Outputs
Closed Loop and Contributors
Define the final functional dimension and all contributing dimensions.
Contribution Ranking
Identify the dimensions that contribute most to final variation.
Datum and Dimensioning Recommendations
Reduce unnecessary chained dimensions, datum transfers and variation propagation.
CTQ and Inspection Plan
Define specifications, tolerances, inspection locations, methods and frequency.
SPC and CPK Plan
Establish trend monitoring and process capability evaluation for major contributors.
Assembly Validation Method
Validate the stack-up using actual clearance, preload, sealing or contact results.
Project Implementation
Pre-Trial Assessment
Build the initial stack-up from drawing tolerances and functional requirements, then identify risks and major contributors.
Production Introduction Validation
Use trial and pilot-production data to update the model and confirm CTQs, tolerances and inspection plans.
Stable Production Control
Validate stability through SPC, CPK and assembly results, and reassess after engineering changes.
The final result of a stack-up review is not merely a calculation sheet, but an engineering control plan that can be implemented across drawings, machining, inspection, assembly and production monitoring.
TOLERANCE STACK-UP RFQ
What Information Is Needed for a Stack-Up Review?
A complete stack-up review requires more than individual part drawings. Assembly relationships, functional requirements and project-stage information are also needed.
Assembly and Part Drawings
Used to identify part relationships, datums, fits and assembly sequence.
Final Functional Requirements
Define clearance, preload, seal compression, total height or contact condition.
Critical Purchased-Part Specifications
Provide dimensions and tolerances for bearings, seals, shims and other purchased parts.
Project Stage and Volume
Clarify whether the project is in prototyping, production introduction or stable production.
Available Measurement Data
Include dimensional distributions, assembly results, CPK data or historical issues.
Important Note
A single part drawing is usually insufficient for a complete functional stack-up review. Assembly drawings, part relationships and final functional requirements should also be provided.
ENGINEERING FAQ
Tolerance Stack-Up Engineering FAQ
Common questions about tolerance accumulation, drawing optimization, major contributors and production control.
01 Why can an assembly fail when every individual part dimension passes inspection?
Multiple contributing dimensions affect the final closed-loop result in different directions. Even when every dimension remains within its own tolerance, unfavorable variation can combine and push clearance, preload, total height or contact condition outside the functional requirement.
02 Is tolerance stack-up analysis simply the addition of all tolerances?
No. The closed loop, contributing dimensions, positive and negative contributors, and datum relationships must first be identified. Worst-case, statistical or actual process-data methods are then selected according to project risk.
03 Can stack-up risk be reduced during the drawing-design stage?
Yes. Aligning design, machining, inspection and assembly datums, while reducing unnecessary chained dimensions and datum transfers, can reduce variation propagation. Unavoidable functional stack-ups are then analyzed and controlled.
04 Which dimensions require SPC and CPK management?
Not every dimension requires the same level of statistical control. Dimensions with the greatest contribution to the final functional result should be converted into CTQs and monitored according to production risk, frequency and inspection capability.
05 When should a tolerance stack-up be reassessed?
Reassessment is recommended after design changes, material or supplier changes, process adjustments, fixture or datum changes, finishing changes, abnormal variation and during production introduction.
