Engineering answer

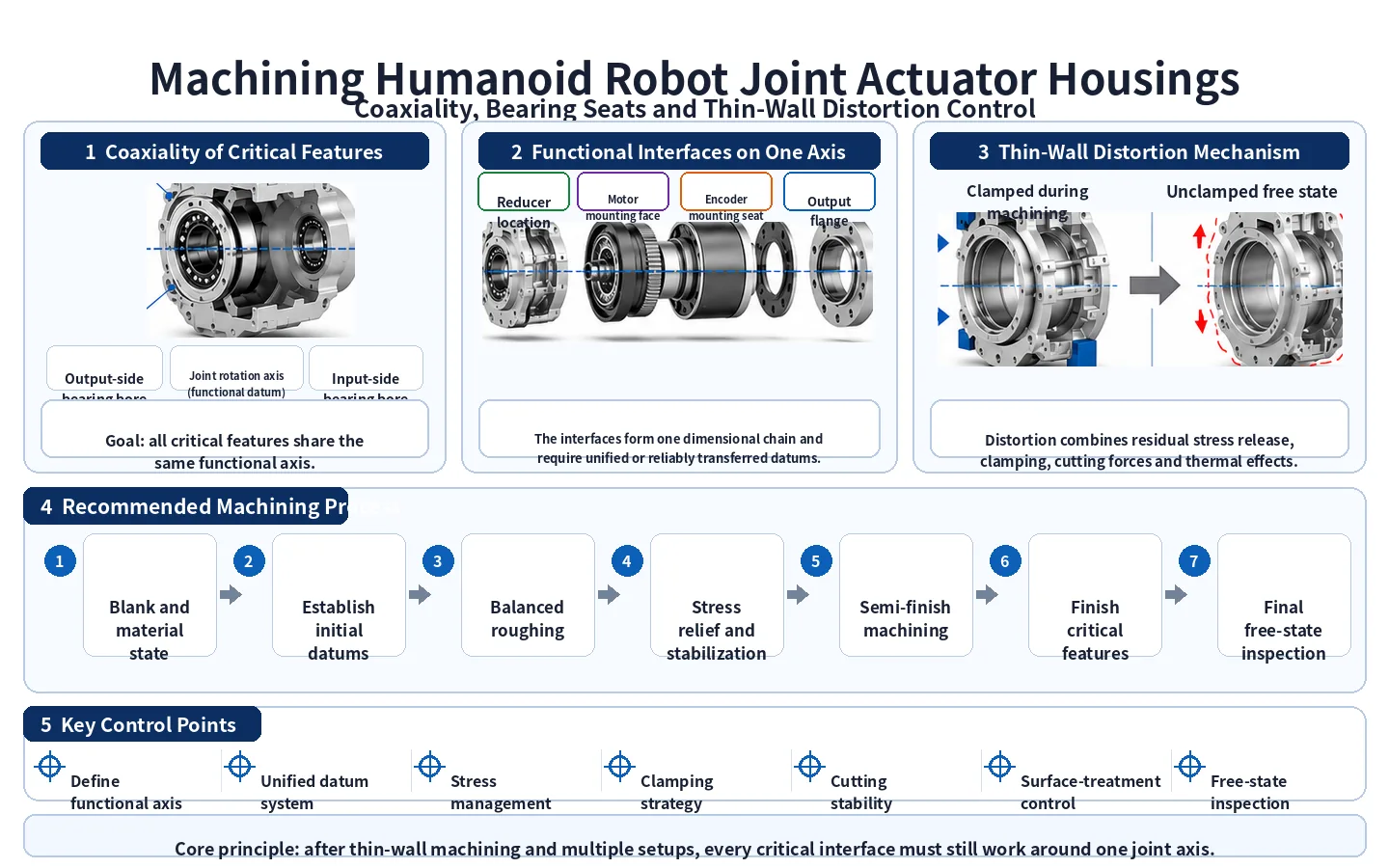

A humanoid robot joint actuator housing may look like a compact aluminum part with circular bores, flanges and lightening pockets. Once the bearings, reducer, motor, encoder and output components are installed, however, the housing performs a much more demanding function: it organizes every critical interface around one joint axis.
Every stage of manufacturing can change that relationship:
- roughing releases residual stress;
- fixturing can squeeze thin walls;
- cutting force and heat deflect local features;
- repeated setups introduce datum-transfer error;
- surface treatment changes precision fits;
- bearing installation may change the bore shape again.
The real target is therefore not an in-process dimension alone. It is that the bearing bores, reducer location, motor and encoder interfaces, and output flange still operate around one functional axis after unclamping, finishing and final assembly.
1. What does “actuator housing” mean here?
The housing discussed in this article is not merely an external cover. Depending on the product, similar parts may be described as a housing, case, frame, body or bearing support.
A compact housing may integrate:
- input- and output-side bearing seats;
- reducer locating shoulders and mounting faces;
- motor stator, rotor or bracket interfaces;
- encoder, sensor and cable-routing features;
- an output flange or robot-link connection;
- seals, covers, threads and dowel holes;
- local heat-transfer paths and lightweight pockets.
It is therefore a load-bearing structure, a locating body and the starting point of a functional tolerance chain. A dimensionally acceptable housing does not automatically guarantee a well-performing actuator assembly.
2. Define the functional joint axis before planning operations
A housing may contain several cylindrical features, but they are not equally important. Process planning should first establish:
- Which bearing pair defines joint rotation?
- Which shoulder and face locate the reducer?
- Which axis controls the motor mounting face?
- Does the encoder measure the input or output side?
- Must the output flange remain coaxial and square to the bearing axis?
The key relationships form one continuous dimensional chain:
Input-side bearing bore
→ reducer locating feature
→ output-side bearing bore
→ motor mounting face
→ encoder interface
→ output flangeIf these features are machined in unrelated setups, each individual bore and face can pass inspection while the assembled actuator still contains offset, angular error or runout.
Process planning should prioritize functional-axis consistency, not simply the easiest sequence for programming or loading the machine.
3. Coaxiality is more than two acceptable bore diameters
Two bearing bores within size tolerance are not necessarily coaxial. Engineers must also consider:
- radial offset between bore centers;
- angular difference between the bore axes;
- taper, lobing or local restriction within each bore;
- squareness of the bearing shoulders to the functional axis;
- datum drift after the part is turned over;
- bore-shape change after bearing installation.
Where geometry allows, critical bearing bores and locating features should be finished in one setup or from one common precision datum. If machine travel, tooling or access requires multiple setups, datum transfer should use a finished locating diameter, face, precision mandrel or purpose-built fixture rather than re-establishing the part from a rough exterior.
4. A bearing seat is not only a bore diameter
A complete bearing location often includes the fit diameter, locating shoulder, axial clamping face, retaining-ring or cover interface, chamfer, sealing feature and surrounding support structure.
| Critical characteristic | Possible effect |
|---|---|
| Bore size and fit | Bearing clearance, preload, creep and installation force |
| Roundness and cylindricity | Outer-ring load distribution and running resistance |
| Shoulder squareness | Bearing tilt and uneven axial preload |
| Relationship between bearing axes | Shaft binding, offset loading and output runout |
| Local wall thickness and ribs | Bore deformation during clamping, cutting and press fitting |
| Surface-treatment condition | Final fit size and contact condition |
Acceptance should therefore go beyond whether a plug or bore gauge passes. For demanding projects, the condition during machining, the unclamped free state and the bearing-installed state may all require consideration.
5. Why does a thin-wall housing move after unclamping?
Lightweight actuator bodies often contain deep cavities, large pockets, openings and asymmetric ribs. As material is removed, mass, stiffness and internal stress balance all change.
5.1 Residual stress in the blank
Plate, forging or extrusion stock can contain residual stress. Heavy roughing disturbs its balance and may produce warpage, twist, bore-axis movement or flange distortion.
5.2 Clamping creates a temporary shape
If the fixture loads a thin wall or an open section, the housing may already be elastically distorted. Finishing the part in that condition produces a dimension that changes after release.
5.3 Cutting force and changing dynamic flexibility
As wall thickness decreases, the tool can deflect the workpiece more easily, causing dimensional error, chatter, waviness or uneven wall thickness. Parameters stable during roughing may not remain stable in the final thin-wall stage.
5.4 Heat and local expansion
Extended cutting raises local temperature. Dimensions finished or measured in a thermally uneven condition can change after the part cools.
Thin-wall distortion is usually a combined result of residual stress, clamping force, cutting force and thermal effects rather than one isolated cause.
6. Why not remove the entire cavity in one operation?
Removing all material at once appears efficient, but it leaves final finishing to a structure whose stiffness has already collapsed and whose stress is still redistributing.
A more stable route typically includes:
- blank and material-state confirmation;
- establishment of initial process datums;
- balanced and staged rough machining;
- sufficient stock on critical bores and faces;
- unclamping and the required stabilization or distortion observation;
- semi-finishing to approach final structural stiffness;
- final machining of bearing seats and locating faces;
- final inspection after surface treatment.
Natural stabilization, stress relief or another treatment should be selected from material condition, removal ratio, wall thickness, tolerance and prototype evidence. It should not be prescribed identically for every 7075 housing.
7. Balanced stock removal matters more than simply lowering feed
Distortion often develops because material and stiffness become highly asymmetric. One side may be fully pocketed while the opposite side remains close to the original blank.
Depending on geometry, process planners can use:
- alternating machining from opposite sides;
- layered and circumferential stock removal;
- staged roughing of paired cavities;
- temporary ribs or process bridges;
- delayed thinning of critical flanges;
- datum and distortion checks after semi-finishing.
Balanced machining does not require perfect geometric symmetry. Its purpose is to avoid extreme imbalance in stiffness and material distribution at any intermediate stage.
8. Thin-wall fixtures should not simply clamp harder
The fixture must locate the part repeatably without forcing it into an artificial geometry.
Useful strategies include:
- supporting thick walls, ribs and flange regions;
- distributing force across more support points;
- avoiding weak areas near bearing seats;
- using soft jaws, annular supports or custom fixtures;
- supporting internal cavities when necessary;
- reducing unnecessary clamping force before finishing;
- measuring critical features after release.
A three-jaw chuck applied directly to a thin circular wall can create a temporary three-lobed shape. The bore may appear round while clamped and reveal roundness error only after release.
9. At what stage should critical bores and faces be finished?
Rough machining
Remove the main stock and observe the global distortion trend. Retain stable finishing allowance on bearing bores, reducer locations and output interfaces.
Semi-finishing
Bring walls, openings and ribs close to the final structural condition. Check flange warpage, bore movement, wall-thickness balance and datum stability.
Critical finishing
Finish the features that determine assembly and rotary performance around the functional axis:
- bearing fit bores;
- reducer locating shoulders;
- bearing shoulders and mounting faces;
- output flange interface;
- encoder and dowel locations.
The sequence should follow the functional tolerance chain, not merely group operations by tool type.
10. Do critical dimensions change after anodizing?
Anodizing and hard anodizing change the actual condition of bores, locating diameters, dowel holes, threads and sealing surfaces.
| Area | Typical control approach |
|---|---|
| Precision bearing bore | Masking, machining compensation or post-treatment finishing |
| Reducer locating diameter | Define whether the coating participates in the final fit |
| Dowel hole | Mask or re-inspect after treatment |
| Grounding surface | Local masking or a separate conductive treatment |
| Seal face or groove | Control coating condition, roughness and defects |
| Thread | Allowance, masking, cleaning and post-treatment verification |
Surface-treatment strategy must be agreed during drawing and process review rather than improvised after machining.
11. How should coaxiality, bore form and free-state distortion be verified?
| Inspection target | Possible method |
|---|---|
| Bearing bore size | Bore gauge, air gauge or another suitable system |
| Roundness and cylindricity | Roundness measurement or sufficiently dense profile sampling |
| Relationship between bearing axes | CMM, precision mandrel or dedicated gauge |
| Shoulder squareness | CMM, face runout or dedicated measurement |
| Output radial and face runout | Measurement from the functional axis |
| Flange flatness | CMM or an appropriate flatness method |
| Unclamped distortion | Re-measure critical geometry in the free state |
| Fit after surface treatment | Final dimensional and assembly verification |
A result measured while the fixture forces the part into shape cannot fully represent its usable condition. The acceptance state should be defined: after machining, after surface treatment, after bearing installation or as a completed actuator assembly.
12. What information should be supplied for quotation and review?
Provide at least:
- 2D drawing and 3D model;
- material grade, temper and blank form;
- functional joint axis and datum scheme;
- bearing model, fit and installation requirements;
- reducer, motor, encoder and output interfaces;
- critical GD&T and final measurement state;
- minimum wall thickness and allowable distortion;
- surface treatment and masking boundaries;
- assembly sequence, axial preload and tightening requirements;
- prototype, pilot and production volumes.
A professional review should ask not only “what is the tolerance?” but also which bearing pair defines the axis, which feature performs location, which dimensions are accepted after surface treatment and whether inspection is required in the free or assembled state.
Conclusion: the process controls an invisible axis
The value of actuator-housing machining is not simply producing a complex outer form. It is maintaining a functional axis through deep pockets, thin walls, multiple setups and surface treatment:
Define the functional axis
→ establish reliable datum transfer
→ remove stock in a balanced sequence
→ expose and manage distortion
→ finish critical interfaces last
→ verify free and final statesZhongde evaluates not only individual bore sizes but also the relationship among bearing locations, reducer and motor interfaces, encoder features, output connections and post-treatment dimensions. A housing has real assembly and production value only when these features work together around the same joint axis.
Frequently asked questions
Why can an assembly bind even when both bearing bores meet their diameter tolerances?
Correct diameters do not prove that the two bore axes coincide. Axis offset or angular error, cylindricity error, shoulder squareness and bore deformation after bearing installation can all create bearing and shaft misalignment.
Should a thin-wall actuator housing be clamped as tightly as possible?
No. Excessive clamping force can hold the housing in a temporary distorted shape, so bore size, roundness, flatness and position rebound after release. The fixture should support rigid regions and apply distributed, repeatable and only sufficient force.
Should bearing bores be finished before or after anodizing?
It depends on the fit tolerance, coating requirement and manufacturing route. Common approaches include masking precision bores, compensating the machining size, or performing final finishing after surface treatment. The drawing must define the manufacturing state in which final dimensions are accepted.
Must coaxiality always be measured on a CMM?
Not necessarily. Depending on geometry and tolerance, a CMM, precision mandrel, roundness or runout method, or a dedicated gauge may be used. The measurement datum must represent the true functional joint axis.
Why are 7075 housings stabilized and re-fixtured after rough machining?
Heavy material removal changes residual-stress balance and structural stiffness. Unclamping, stabilization, distortion checks and re-location expose part of the dimensional movement before critical bearing bores and locating faces are finished.
